Category
Plates and Screws
ANKx
Some times less is more. Although, more can certainly be had for less. ANKx, OIC's ankle fixation system, delivers on just that.

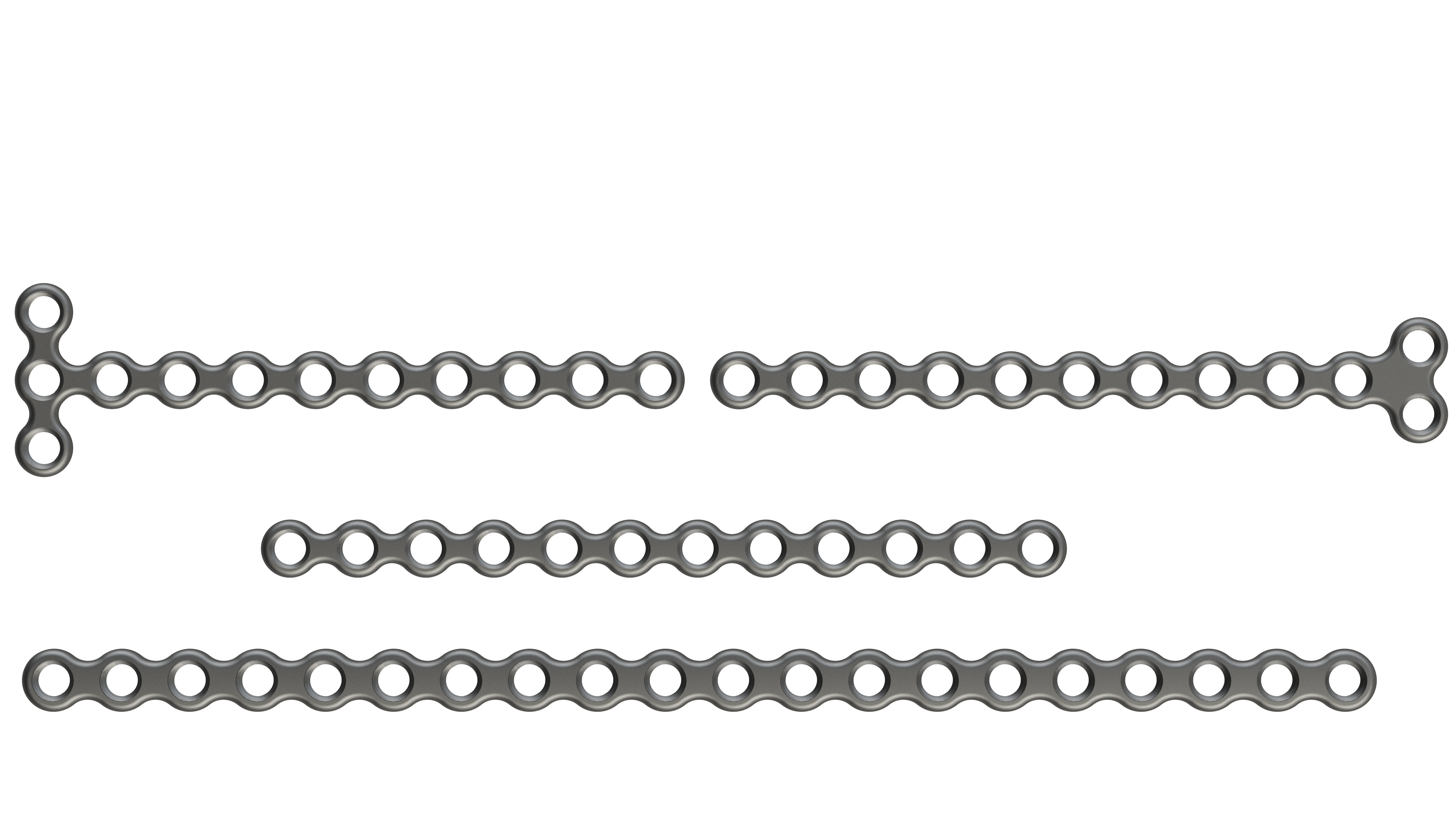

A new hook plate, paper-thin 1/3 tubular plate and cancellous screws join OIC's distal fibula and 4.0 cannulated screws in one sleek system, to accommodate virtually every technique employed to reduce and fix ankle fractures. And with OIC's value-proposition, your patients certainly get more for less.
Resources:
Features
- Hook plate provides for compression across transverse fibular, lateral and medial malleolar fractures
- Paper thin 1/3 tubular plates with locking and non-locking holes
- Anatomic distal fibula plates with locking and non-locking holes
- Ø4.0 cancellous screws, lengths of 35mm - 50mm
- Ø4.0 cannulated screws in 1/2 and 1/3 thread, lengths of 36mm - 44mm
- Leverages OIC Small Frag Plating System instrumentation and cortex screws for instant familiarity while flattening surgical technique learning curve
Olecranon
The olecranon plate is OIC's latest addition to its Small Fragment Anatomic Plating System. All holes are locking, non-locking and variable angle to accommodate a broad spectrum of fracture patterns and anatomies.
The plate incorporates leading designs with the tried and trusted performance of variable angle and locking technology supporting all of OIC's small fragment plates.
The result is an approach to olecranon plating that's elegantly simple and instantly familiar. The only feature that will catch you off guard is its game-changing value.
Resources:
Features
- Type II Anodized Titanium
- Low profile plate and screw design minimizes soft tissue impingement
- Contoured to fit ulna PUDA and varus angulation
- Proximal head holes facilitate suture management for soft tissue repair
- Channeled to accommodate dorsal ulnar ridge
- Locking, non-locking and variable angle technology at every hole
DRPx

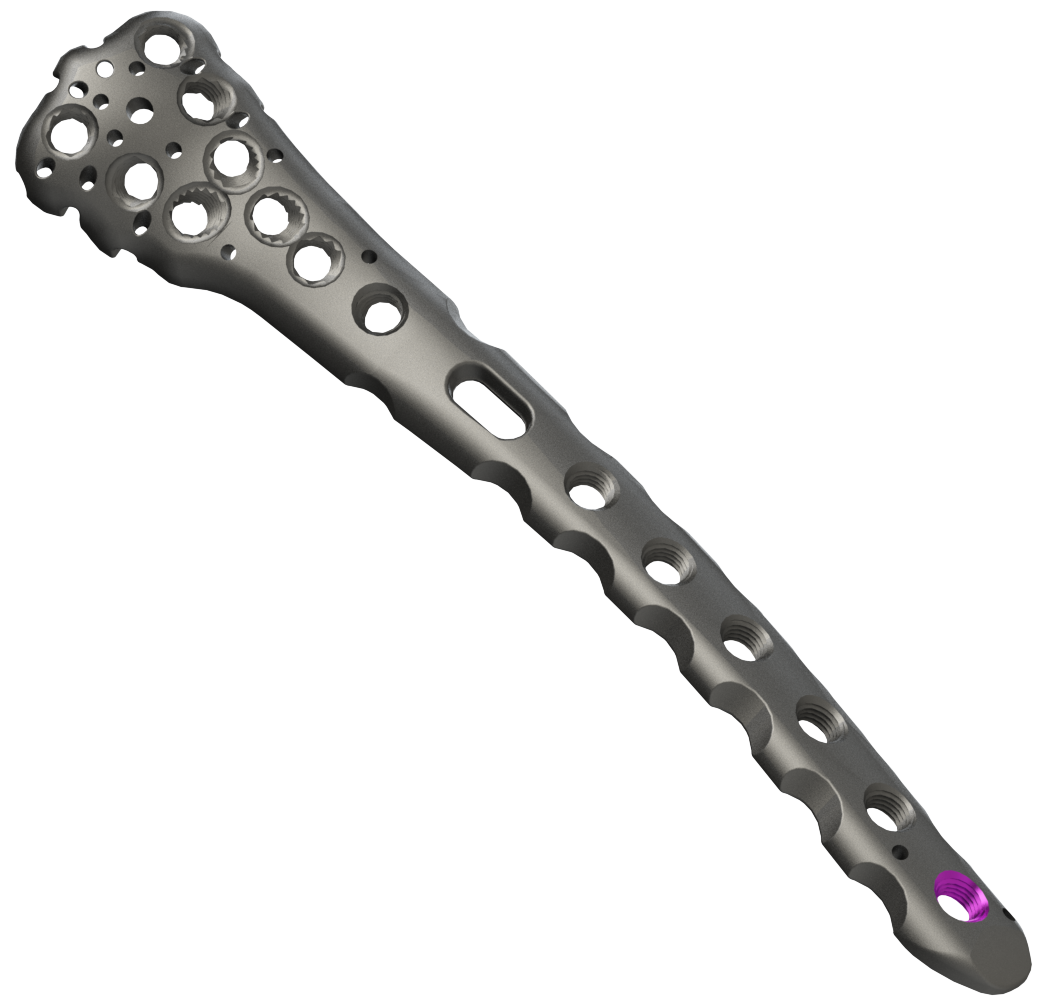

The OIC DRPx Distal Radius Plate represents a best-in-breed approach to wrist fracture and care. As distal radius fractures have become one of the most common injuries treated with internal fixation, OIC supports surgeon and facility in achieving great outcomes under increasing reimbursement pressures. We believe in creating better value for the implants you already know and use on an everyday basis.
Features
- Type II Anodized Titanium
- Pre-contoured anatomic plates.
- Color coded for easy identification: Right or Left
- Low profile plate and screw design to minimize soft tissue irritation
- Variable angle (up to 15°) and fixed angle locking options for maximum flexibility
- Distal window for graft and/or fracture visualization
- Indicator lines for improved guidance and adjustment
- Variety of optional screw targeting methods to maximize surgeon preferences
- 3.5mm locking and non-locking shaft screws
Variety of distal screws:
- 2.0mm Smooth Locking Pegs
- 2.3mm Threaded Locking Screws
- 2.6mm Non-Locking Screws
- 2.6mm Variable Angle Compression Screws
DSP
The OIC Dorsal Spanning Plate completes OIC's distal radius plating system, DRPx. Simple and intuitive, the DRPx plating system is not just elegantly designed, but is now surgically comprehensive as well. While indications may vary between a volar or dorsal approach, it only takes one system to deliver on high value.
Features
- Type II Anodized Titanium
- Pre-contoured anatomic plates
- Low profile plate and screw designed to minimize soft tissue irritation
- Variable angle (up to 15°) and fixed angle locking options for maximum flexibility
- Pre-contoured 6° volar angulation bend
- Variety of optional screw targeting methods addresses surgeon preferences
- 3.5mm locking and non-locking radius screws
- 2.6mm locking and non-locking metacarpal screws
- Ergonomic handle facilitates plate insertion
Clavicle
The Clavicle Locking Plate and Screw Set from OIC raises the bar for high-value implants. Considered the most unique bone in the body, the anatomy of the clavicle presents unique challenges in gaining successful fracture repair. OIC’s anatomic clavicle plates meet the needs of virtually all fracture patterns while giving surgeons the options needed for reliable clinical outcomes.
Resources:
Features
- Contoured, anatomic distal plates
- Contoured, anatomic medial plates
- Color-coded plates and screws for easy identification
- 2.5mm and 3.5mm locking and non-locking screws
- Fixed and Variable angle locking holes that accommodate 15 degrees of freedom
- Optional hole covers for increased fatigue strength
- Leverages the OIC Small Fragment Lock Plating System’s instrumentation and screws for instant surgeon and staff familiarity
- Made of titanium
Proximal Humerus
Proximal humerus fractures present incredible challenges in achieving optimal clinical outcomes. The OIC Proximal Humerus plate is in lock step with surgeons’ goals for internal fixation, focusing on prevention of subacromial impingement and varus collapse of the humeral head. Furthermore, suture holes allow surgeons to place sutures addressing tuberosity repairs post humeral-head fixation.
More innovative than its design, the OIC Proximal Humerus plate brings innovation to value in the operating room that all patients appreciate. It’s a new world in healthcare where facility and surgeon can demand the highest quality and value in a single implant that only OIC can deliver.
Resources:
Features
- Pre-contoured anatomic left and right plates minimize need for deltoid release
- Unique convergent and divergent screw trajectories create exceptional pull-out strength
- Options for locking and non-locking fixation in each hole
- K-Wire holes for plate positioning and fracture reduction
- Optional proximal screw targeting guide for easy screw insertion
- 3.5 hexalobe locking and non-locking shaft screws (10mm – 60mm in length)
- Leverages the OIC Small Fragment Lock Plating System’s instrumentation and screws for instant surgeon and staff familiarity
- Made of Titanium Alloy
Proximal Tibia
In order to get the best value today, sometimes you need to step back and take in the bigger picture.
A successfully healed proximal tibia fracture can ward off arthritis and probability for knee arthroplasty down the line. With one chance to get it right, OIC has produced anatomic lateral and posterior-medial proximal tibia plates with value that lasts a lifetime.
To provide incredible short-term value is not enough – that’s why we dedicate all of our resources to design, quality and ease of use.
Resources:
Features
- Lateral and Posterior-medial anatomic plates
- Low Profile Design
- Color-coded plates and screws for easy identification
- 3.5mm Locking and non-locking option at every hole
- Fixed and variable angle locking options at every hole, accommodating 15 degrees of freedom
- Leverages the OIC Small Fragment Lock Plating System’s instrumentation and screws for instant surgeon and staff familiarity
- Made of titanium
Distal Tibia
OIC introduces its anterolateral distal and medial distal tibia plates – a welcomed addition to the OIC small fragment plating system. Leveraging instrumentation used with all OIC small fragment plates, OIC ankle plates refuse to accept the status quo. The result is better value in healthcare for all.
Resources:
Features
- Medial and Anterolateral Distal Tibia anatomic plates
- Low Profile design
- Color-coded plates and screws for easy identification
- 2.5mm Locking and Non-Locking holes distally
- 3.5mm Locking and Non-Locking holes proximally
- Fixed and variable angle locking options at every hole, accommodating 15 degrees of freedom
- Leverages the OIC Small Fragment Lock Plating System’s instrumentation and screws for instant surgeon and staff familiarity
- Manufactured of Type II Anodized Ti-6Al-4V
